DESCRIPTION

Cheryong's SIUT, Solid Insulation Underground Transformer, represents a major advancement in transformer technology. The SIUT is built by oil-free construction with maintenance free solid insulation and is hermetically sealed in polymer shell. As a result, SIUT delivers exceptional performance, reliability and safety. Since SIUT does not contain liquid for insulation or cooling, there is no threat of an oil leak or explosion. In addition, the compact size of SIUT minimizes excavation work and enables easy installations in any location including very small and limited space. Our SIUT is designed specifically for sub-surface applications and can be installed for above-ground applications; such as buildings.

FEATURES

ㆍOil-free solid insulation construction with APG casting technology

ㆍUnderground type(subsurface)

ㆍIntegrally molded HV bushings and LV cable leads

ㆍNon-corrosive, non-explosive

ㆍHigh short circuit withstand strength

ㆍLow sound level

ㆍCompact (50% smaller compared to conventional oil-filled transformer)

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 24,940GrdY/14,400V
LV	600V and Below
RATING	25~167kVA
IMPEDANCE	1.0 ~ 3.5%
MAX. BIL	125kV BIL
Core Design	Shell Form
Standards	IEEE/IEC/NEMA
INSULATION	200℃ insulation system
Tank Type	Thermoplastic
Basic Components	HV/LV Bushings Lifting devices Ground Connectors Parking stand

Download Catalog

DESCRIPTION

SIOT, Solid Insulation Overhead Transformer, is a revolutionary transformer which is a breakthrough solution for existing overhead distribution transformers. For number of decades, standard overhead transformers have been part of our daily lives. However due to its distinctive charactersitcs, there were limitations on installation sites; dust, humidity, interference of branches and bushes and so on. SIOT is designed to fully operate under harsh environment and offers easy and safe access for workers.

FEATURES

ㆍHV & LV integrally molded

ㆍOil-free solid insulation

ㆍNon-explosive

ㆍSelf-extinguishing

ㆍGreat application for severe environment

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 24,940GrdY/14,400V
LV	600V and Below
RATING	25~100kVA
IMPEDANCE	1.0 ~ 3.5%
MAX. BIL	125kV BIL
Core Design	Shell Form
Standards	IEEE/IEC/NEMA
INSULATION	200℃ insulation system
Tank Type	Mild Steel/Stainless Steel
Basic Components	HV/LV Bushings Lifting devices Ground Connectors Support Lugs

Download Catalog

DESCRIPTION

SIPT, Solid Insulation Padmount Transformer, is designed to overcome existing issues with conventional Padmount transformers. SIPT is equipped with ventilation windows to improve temperature rise. Full design test reports are available upon request.

FEATURES

ㆍOil-free solid insulation

ㆍNon-explosive

ㆍLow maintenance and low noise

ㆍEquipped with fused elbow connector

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 24,940GrdY/14,400V
LV	600V and Below
RATING	25~50kVA
IMPEDANCE	1.0 ~ 3.5%
MAX. BIL	125kV BIL
Core Design	Shell Form
Standards	IEEE/IEC/NEMA
INSULATION	200℃ insulation system
Tank Type	Mild steel / Stainless steel
Basic Components	HV/LV Bushings Lifting devices Ground Connectors Parking stand Fused Elbow Connector

DESCRIPTION

Cheryong's Polemount transformers are highly reliable and manufactured as per the requirements of customers. They are expertly-designed, engineer-supported transformers which fully meet required standards. Wide range of standards and optional accessories are available for selections.

FEATURES

ㆍHigh reliability

ㆍProven technology

ㆍAdvanced manufacturing and testing facility

ㆍAvailable in both SiFe and Amorphous Core

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 34,500GrdY/19,920V
LV	600V and Below
RATING	10~500kVA
IMPEDANCE	1.0 ~ 5.75%
MAX. BIL	150kV BIL
Core Design	Core/Shell Form
Standards	IEEE/IEC/NEMA
Insulation Oil	Mineral/Natural Ester
Tank Type	Mild Steel/Stainless Steel
Basic Components	HV/LV Bushings Pressure Relief Device Lifting Devices Ground Connectors Support Lugs
Optional	Wildlife Guard De-Energized Tap Changer Surge Arrester Dual-voltage Switch LV Circuit Breaker MagNex Interrupter Tap changer

DESCRIPTION

Cheryong's Pole Mounted transformers are highly reliable and manufactured as per the requirements of customers. They are expertly-designed, engineer-supported transformers which fully meet the requested standards. Wide range of standards and optional accessories are available for selections. Our transformers are both available in Silicon Steel and Amorphous Core.

FEATURES

High reliability

Proven technology

Advanced manufacturing and testing facility

SPECIFICATIONS

FREQUENCY(Hz)	50/60
HV(V)	34,500GrdY/19,920
LV(V)	600V and Below
RATING(kVA)	10~500
IMPEDANCE(%)	1.0 ~ 5.75
MAX. BIL(kV)	150 BIL
Core Design	Core/Shell Form
Applicable Standards	IEEE/IEC/NEMA
Applicable Insulation Oil	Mineral/Natural Ester
Tank Type	Mild Steel/Stainless Steel
Basic Components	HV/LV Bushings Pressure Relief Device Lifting Devices Ground Connectors Support Lugs
Optional	Wildlife Guard De-Energized Tap Changer Surge Arrester Dual-voltage Switch LV Circuit Breaker MagNex Interrupter Tap changer

DESCRIPTION

Cheryong's Pole Mounted transformers are highly reliable and manufactured as per the requirements of customers. They are expertly-designed, engineer-supported transformers which fully meet the requested standards. Wide range of standards and optional accessories are available for selections. Our transformers are both available in Silicon Steel and Amorphous Core.

FEATURES

High reliability

Proven technology

Advanced manufacturing and testing facility

SPECIFICATIONS

Up to 34.5kV 500kVA
* Available in Amorphous Core
* Customized products are available according to customers' specification and requirements

DESCRIPTION

Our 1PH Padmount transformers are applicable for installations at busy city street by connecting underground cables. The transformers are also protected from internal and external problems with the application of various internal fuses. Cheryong’s 1PH Padmount transformer are specifically designed for places which require minimum installation space and quietness.

FEATURES

ㆍHigh reliability

ㆍReduced installation space

ㆍInsulated with either Mineral oil or Natural ester fluid

ㆍVarious optional accessories are available upon request

ㆍAvailable in both SiFe and Amorphous Core

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 34,500GrdY/19,920V
LV	600V and Below
RATING	10~250kVA
IMPEDANCE	1.0 ~ 5.75%
MAX. BIL	150kV BIL
Core Design	Core/Shell Form
Standards	IEEE/IEC/NEMA
Insulation Oil	Mineral/Natural Ester
Tank Type	Mild Steel/Stainless Steel
Basic Components	HV/LV Bushings Pressure Relief Device Lifting Devices Ground Connectors Parking stand
Optional	HV Bushing Insert LV Terminals De-Energized Tap Changer Oil Level Gauge Oil Temperature Indicator Fuse Assembly Dual-voltage Switch Load Breaker Switch Tap changer

DESCRIPTION

Our 3PH Padmount transformers provide extensive options for all users. They are perfect for application in areas which require smaller installation space when compared to substation type transformers. They also provide easier installation, higher efficiency, tamper-resistant structure, low maintenance and safety for both workers and residents. Available in various designs that can be customized as per the specific requirements of end-users.

FEATURES

ㆍHigh reliability

ㆍReduced installation space

ㆍInsulated with either Mineral oil or Natural ester fluid

ㆍVarious optional accessories are available upon request

ㆍAvailable in both SiFe and Amorphous Core

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 34,500GrdY/19,920V
LV	600V and Below
RATING	45~3,750kVA
IMPEDANCE	2.7 ~ 5.75%
MAX. BIL	150kV BIL
Core Design	Core/Shell Form
Standards	IEEE/IEC/NEMA
Insulation Oil	Mineral/Natural Ester
Tank Type	Mild Steel/Stainless Steel
Basic Components	HV/LV Bushings Pressure Relief Device Lifting Devices Ground Connectors Parking stand
Optional	HV Bushing Insert LV Terminals De-Energized Tap Changer Oil Level Gauge Oil Temperature Indicator Fuse Assembly Dual-voltage Switch Load Breaker Switch Jack Pad Tap changer

DESCRIPTION

Cheryong's Oil immersed transformers are designed to provide the best performance and reliability. With our commitment to individualized solutions, we provide highest quality of transformers meeting or exceeding special requirements of customers. Cheryong also provides exceptional after service by dispatching highly skilled engineers and technicians all over the world.

FEATURES

ㆍVarious industrial and residential applications

ㆍConsistent and reliable electricity supply

ㆍLow noise and smaller in size

ㆍVarious selections for optional accessories

ㆍHigh power density

ㆍAvailable in both SiFe and Amorphous Core

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 72,000V
LV	According to Customer's Requirement
RATING	100~30,000kVA
IMPEDANCE	According to Customer's Requirement
MAX. BIL	350kV BIL
Core Design	Core/Shell Form
Standards	IEEE/IEC/NEMA
Insulation Oil	Mineral/Natural Ester
Tank Type	Mild Steel/Stainless Steel
Optional	According to Customer's Requirement Tap changer
Basic Components	HV/LV Bushings Pressure Relief Device Oil Level Gauge Oil Temperature Indicator Ground Connectors

DESCRIPTION

Cheryong's Seismic Withstanding Cast Resin Transformer is highly efficient and has low noise. It is optimally designed to withstand earthquake magnitude of Richter scale 7.3 by adapting advanced technology with integral spacer and energy dissipation type damper.

FEATURES

ㆍFire-resistant & explosion-proof

ㆍEasy transportation and convenient maintenance

ㆍGreat environmental benefits

ㆍHigh short time overload capacity

ㆍLow noise and compact size

ㆍSeismic Withstanding Type available(IEEE STD 693 High)

ㆍAvailable in both SiFe and Amorphous Core

SPECIFICATIONS

- kVA : Single phase (up to 500kVA), Three phase (up to 12MVA)
- HV : Up to 34.5kV
- LV : Up to 25kV
- Insulation class : B or F
- Applicable standards : KS, IEC, IEEE, CSA and IEEE 693 for seismic requirement
* Available in Amorphous Core
* Customized products are available according to customers' specification and requirements

DESCRIPTION

Cheryong's custom engineered Cast Resin transformers are well known domestically and internationally for its low noise and compact size. With the application of cast resin transformers, our customers can reduce costs on low voltage cabling for they are generally located and installed closer to the electrical load when compared to oil immersed transformers. Reduction of maintenance cost and time is also another key factor.

FEATURES

ㆍFire-resistant & explosion-proof

ㆍEasy transportation and convenient maintenance

ㆍGreat environmental benefits

ㆍLow noise and compact size

ㆍSeismic Withstanding Type available(IEEE STD 693 High)

ㆍAvailable in both SiFe and Amorphous Core

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 36,000V
LV	600V and Below
RATING	50 ~ 10,000kVA
IMPEDANCE	4.0 ~ 12.5%
MAX. BIL	170kV BIL
Core Design	Core Form
Standards	IEEE/IEC/NEMA
INSULATION	B/F
Tank Type	IP2X, IP3X, IP4X
Basic Components	HV/LV Bushings Grounding terminal Lifting devices Anti-vibration pad De-energized tap changer Digital temp. indicator

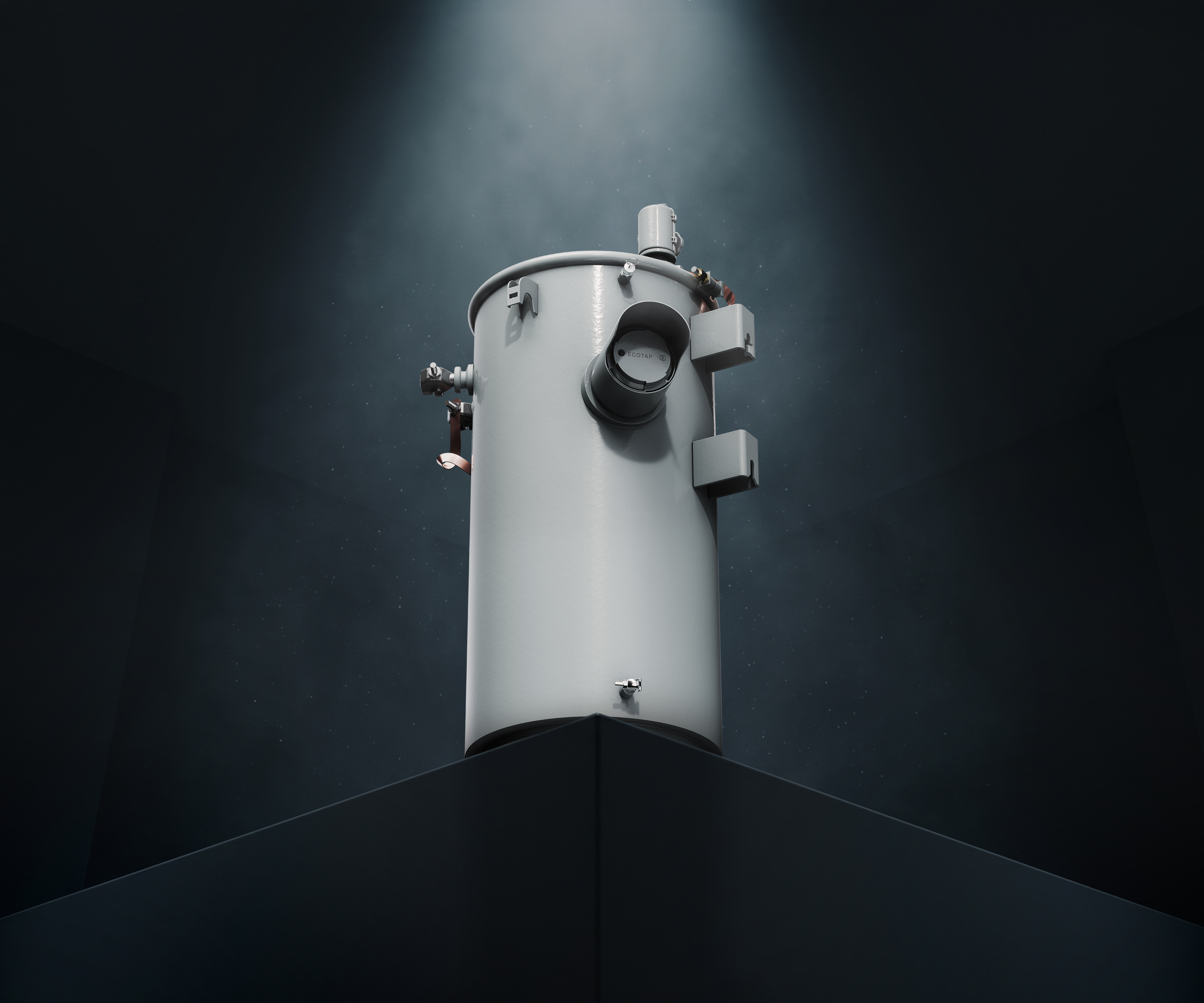

DESCRIPTION

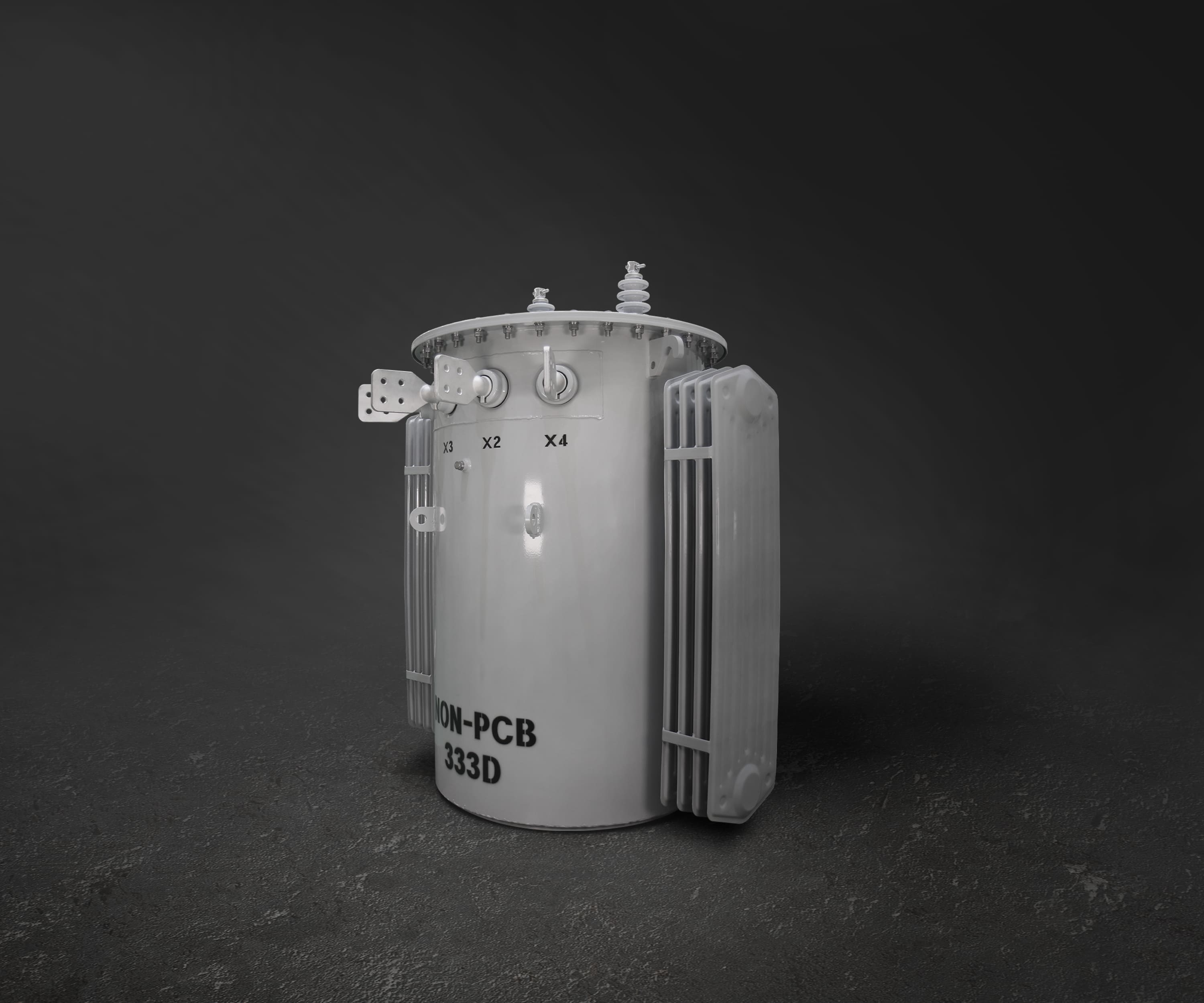

Introducing our latest and finest development, a Polemount Transformer - with On-Load Tap Changer(OLTC). There are times where unstable voltage is provided to the end user and in this case, a complete electric outage is performed to adjust taps on transformers. With the ever-growing number of Electric Vehicles nowadays, installation of EV chargers at home has been trending upward and our OLTC Polemount Transformer will be a perfect solution to provide necessary voltages evenly. The most significant feature of all - it will be able to adjust taps automatically without any electric outage which will save time, money and effort for both utilities as well as end users. OLTC Polemount Transformer is applicable to places where there is high voltage fluctuation and areas with high usage of renewable energy.

FEATURES

ㆍHigh reliability

ㆍUp to 200,000 times of tapping available

ㆍCompact size

ㆍNo maintenance required

SPECIFICATIONS

FREQUENCY	50/60Hz
HV	Up to 24,940GrdY/14,400V
LV	600V and Below
IMPEDANCE	1.0 ~ 5.75%
MAX. BIL	125kV BIL
Core Type	SiFe/Amorphous
Core Design	Core/Shell Form
Standards	IEEE/IEC/NEMA
Insulation Oil	Mineral
Tank Type	Mild Steel/Stainless Steel
Tapping Steps	5-Step
Rated Current(A)	8A
Basic Components	HV/LV Bushings Pressure Relief Device Lifting Devices Ground Connectors Support Lugs OLTC
Optional	Wildlife Guard Surge Arrester LV Circuit Breaker MagNex Interrupter
